16mm Putting Green Turf

Key Features & Benefits

UV-resistant & heat-insulating
Flame-retardant
Automatic water permeation
Non-toxic & antibacterial
Safe & eco-friendly
Highly durable
Thick backing adhesive
————————————
Simple maintenance with low costs
All-weather usable, unaffected by seasons, sun exposure or rain
Suitable for frequent use with consistent performance and long service life, greatly improving the utilization rate of the venue
Turf can be manufactured to the same standard, ensuring fairer competitions
Made of crimped fibers, the turf surface is non-directional, guaranteeing steady footing as well as controllable ball speed and direction
Turf materials can be selected from polypropylene (PP), polyethylene (PE) or nylon (PA) based on regional climate and usage frequency
Imported turf fibers are produced with advanced technology, containing sufficient UV stabilizers. Featuring excellent wear resistance, it can last 6–8 years under normal conditions
The turf is highly resilient, which helps prevent sports injuries and ensures user safety
Field lines are woven into the turf for long-lasting, consistent color
Adopting matte color masterbatch for glare-free performance

Technical Specifications

Model：7016	Material：PE/6000D
Pile Height：16mm	Gauge：5/32 inch
Density：84000stitches/㎡	Back Coating：XPU
Color：Two-color	Weight：2.56kg/㎡
Size：Roll Specification: 4m (Width) ×25m（Length）	Package:By roll in pp bag

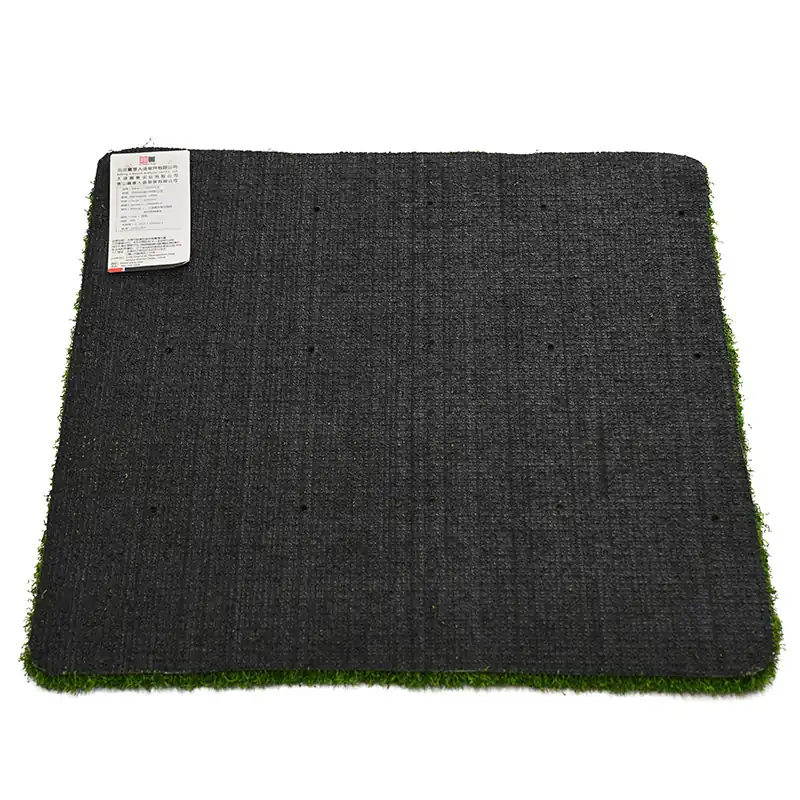

Backing：Three-layer fiberglass high-stabilization anti-aging black-green base fabric

Applications

Residential Backyard Putting Greens, Golf Clubs & Training Academies Practice Areas, Hotel & Resort Leisure Zones, Corporate Office Rooftops & Terraces, Indoor Golf Simulators Supporting Venues, Luxury Community Amenity Areas, Mini Golf Courses.

Paving Process

1.Site Leveling and Hardening

A hard foundation is required, such as cement, asphalt, concrete, or other rigid base materials.Paving can be carried out directly on hardened ground. If the ground is not hardened, it must be hardened in advance.

2.Lay large turf panels first

Transport the large turf panels to the designated positions, unfold and flatten them. Before paving, confirm the direction of the turf fibers; the optimal effect is no light reflection when viewed from the entrance.

3.Adhere the seams with glue

Apply adhesive along the center seam and onto the joining tape. Wait until the adhesive becomes slightly dry, then attach the joining tape to the seam. Apply another layer of adhesive onto the joining tape, and when it turns slightly tacky, press the artificial turf onto the tape to finish the splicing.

4.Adjust details and compact the turf

When the adhesive is about to set, manually press the area back and forth to ensure the seam edges bond tightly with the joining tape. Groom the turf fibers and inspect the work for completion.

FAQ

Q1: Regarding Color Difference

A: All products are photographed in kind. Color discrepancy may objectively exist due to differences in lighting conditions, display devices, and personal perception of colors. We sincerely ask for your understanding.

(Note: Slight color variation may occur between different production batches, so please try to make a one-time purchase. Additionally, lay the turf flat along the direction of the fibers; otherwise, color difference may also occur.)

Q2: Regarding Odor

Q3: Regarding Cutting

A: Since the artificial turf is not shipped in full rolls, customized cutting is required. A small amount of loose fibers and debris may be found along the trimmed edges, and simply cleaning them up will suffice.

Inevitable creases and wrinkles may occur on the turf due to cutting and shipping. These will recover naturally after a period of time, and we sincerely appreciate your understanding. All products are inspected thoroughly before leaving the factory and will not affect normal use.
